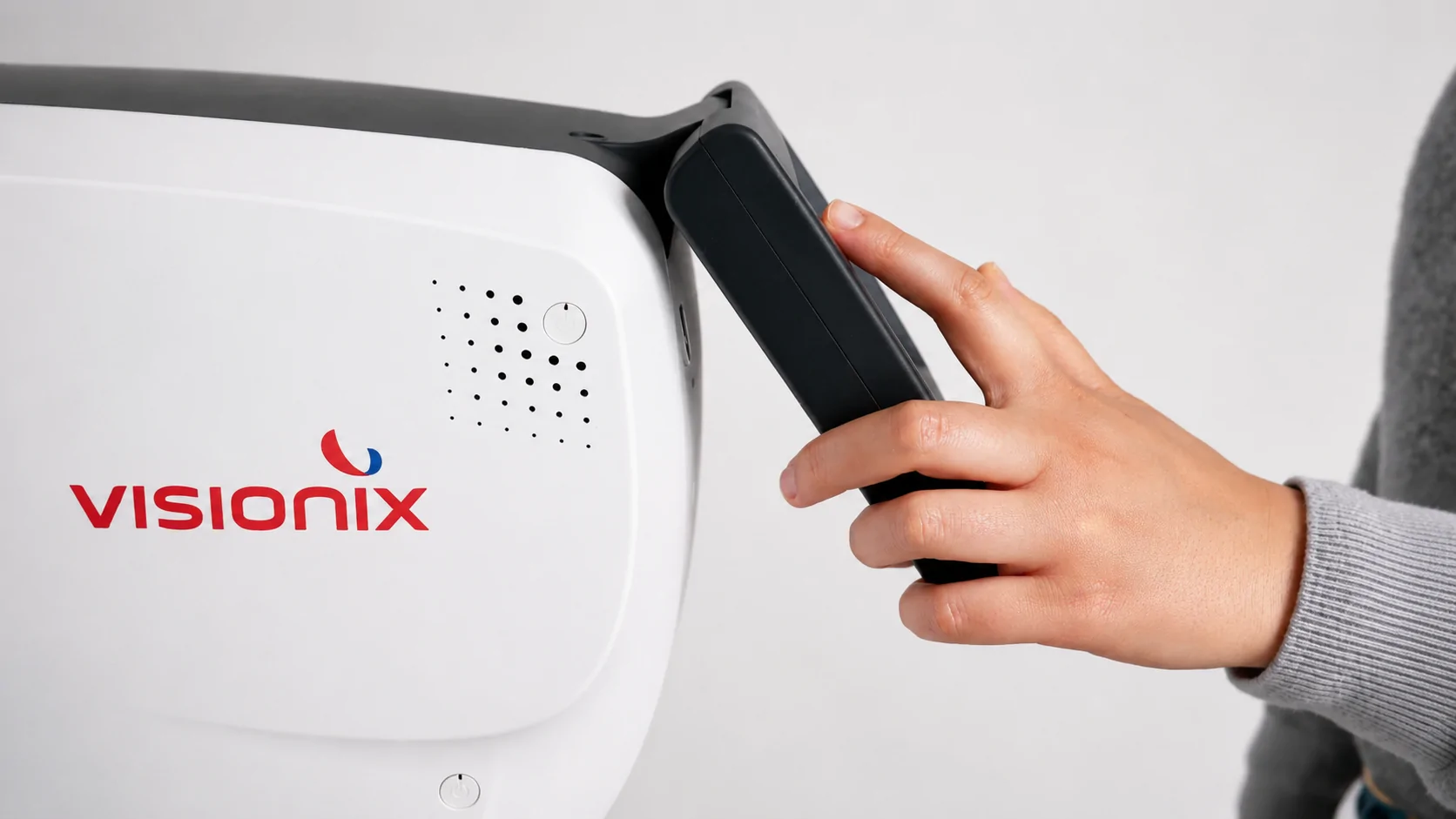

Ecran inclinable vx 90

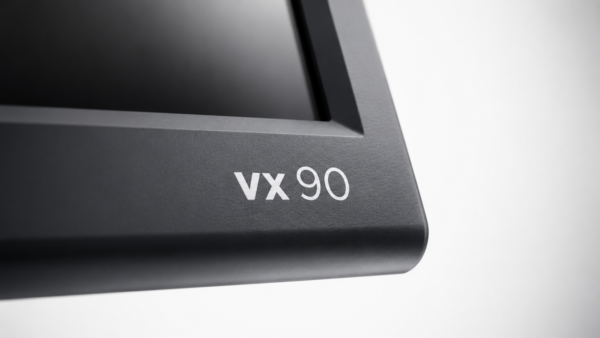

Ecran vx 90

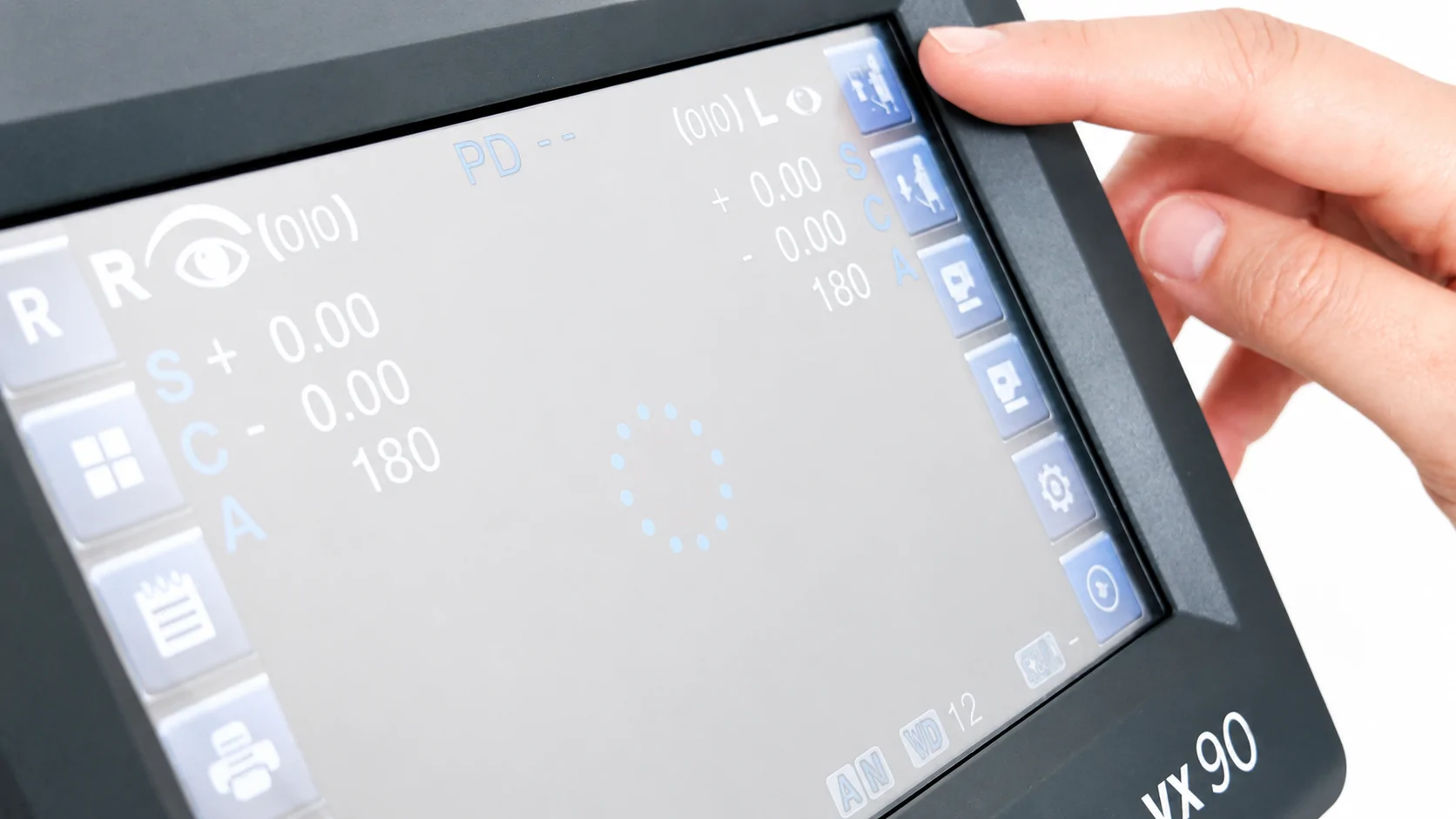

screen inside vx 90

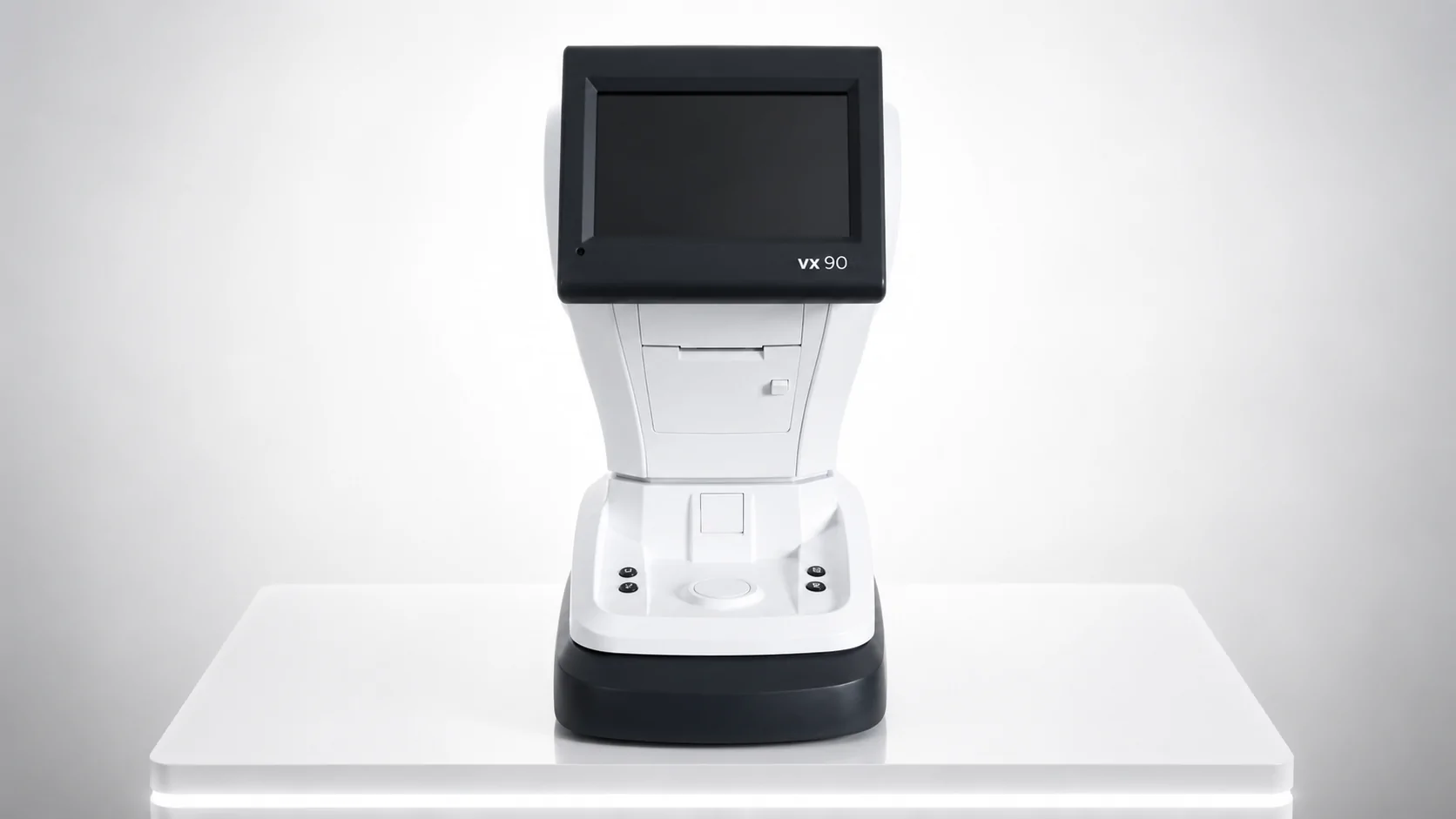

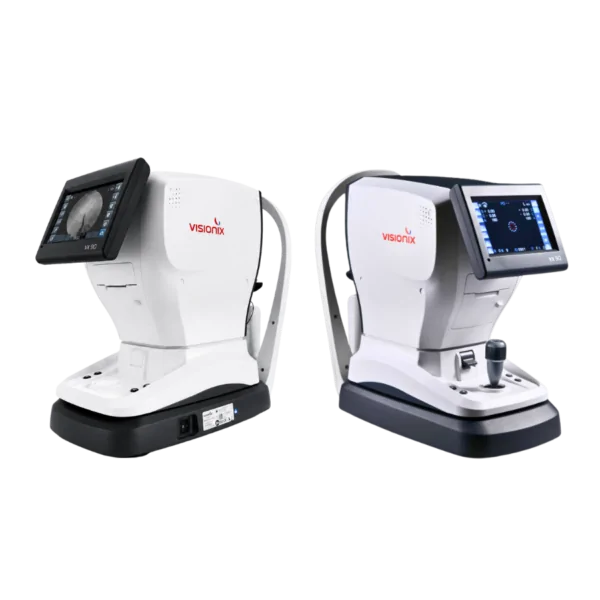

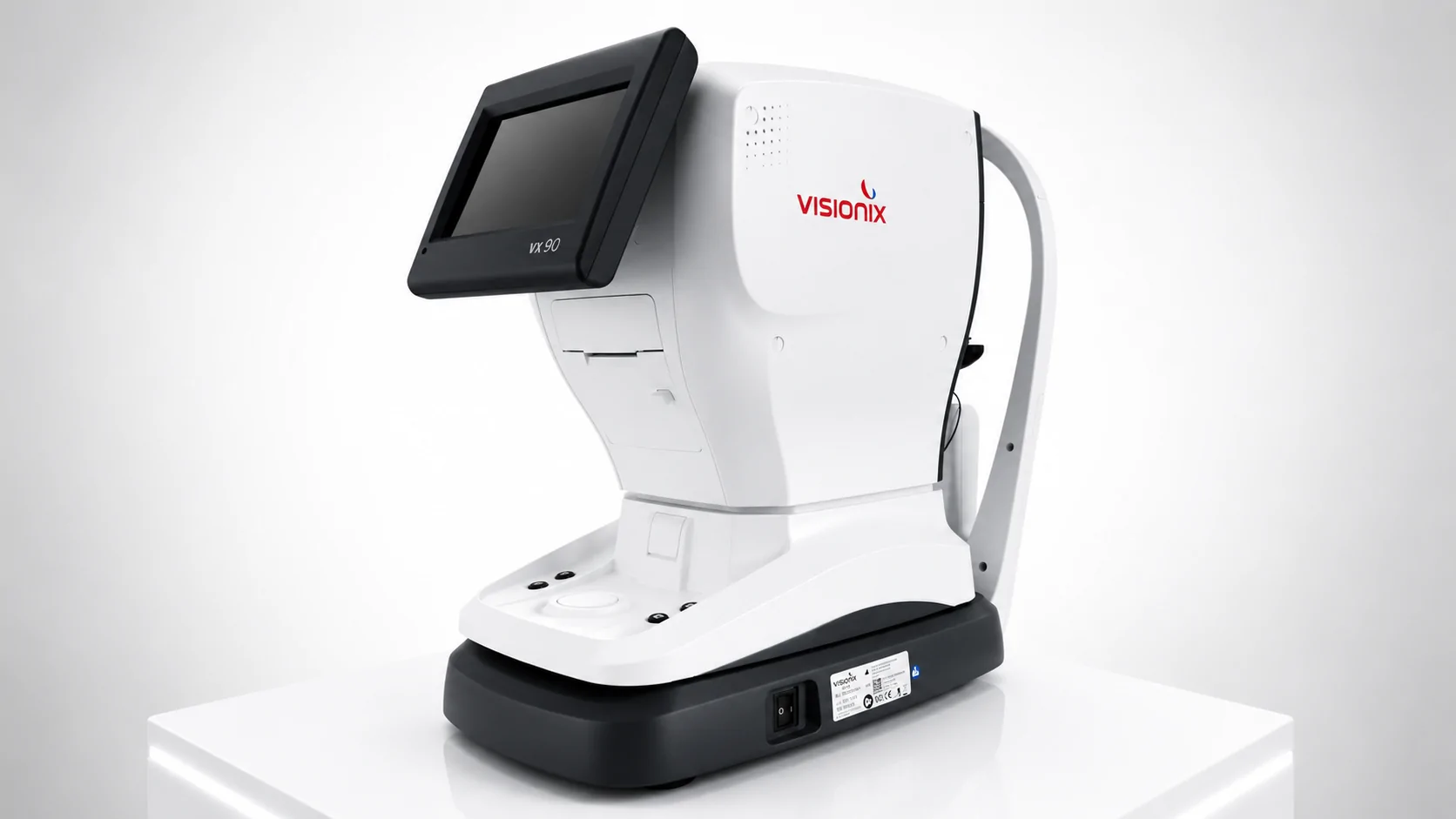

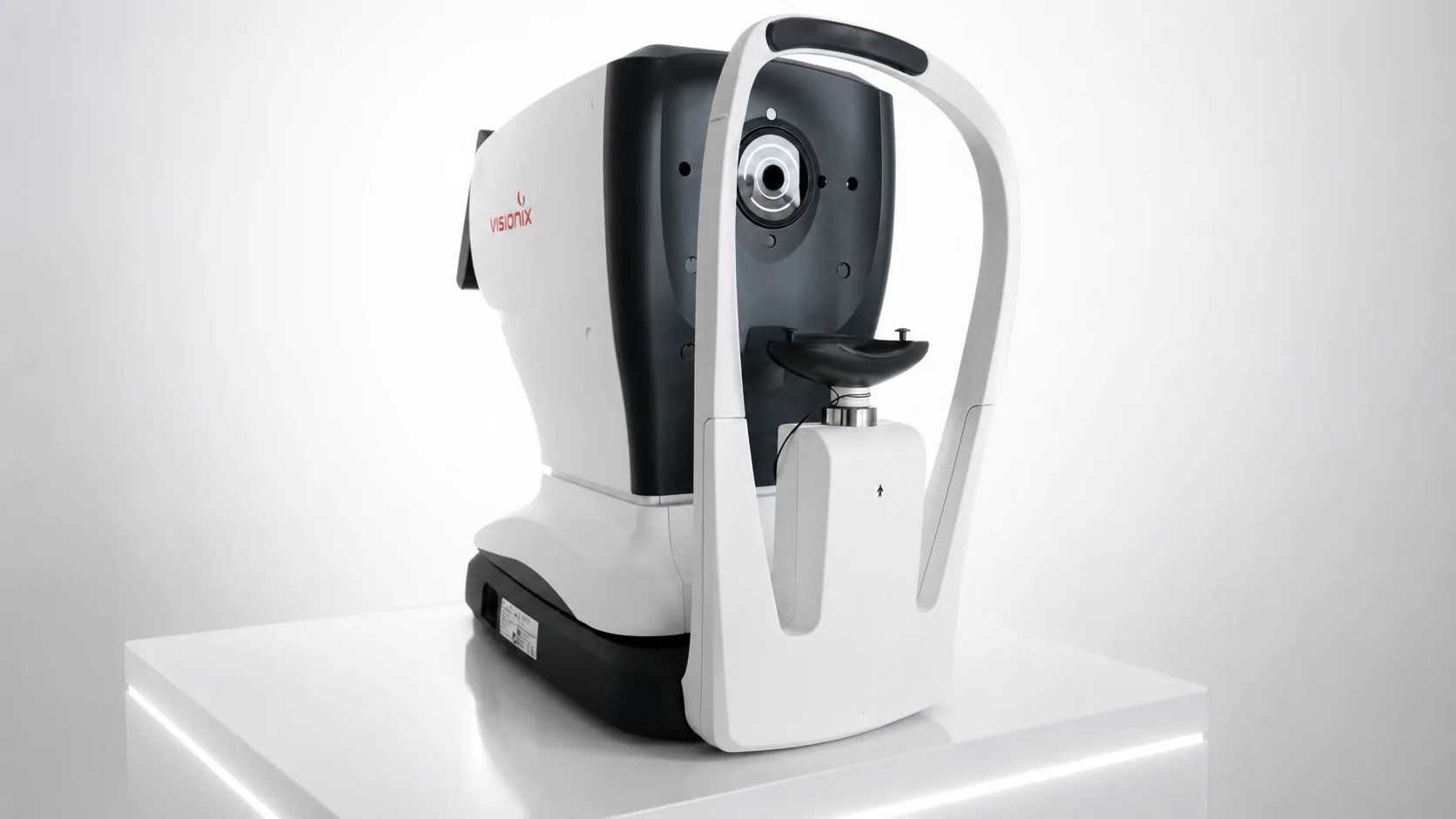

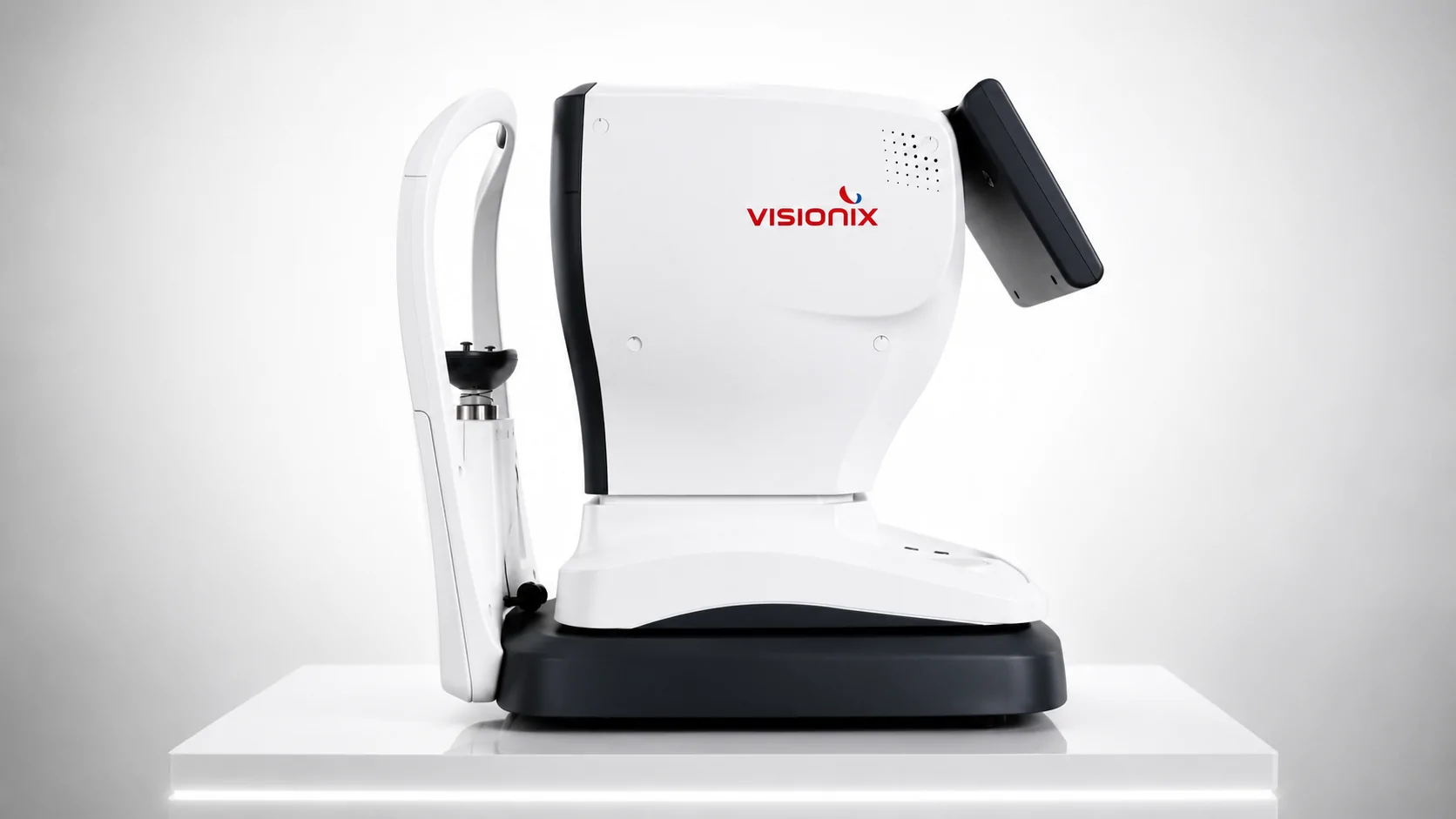

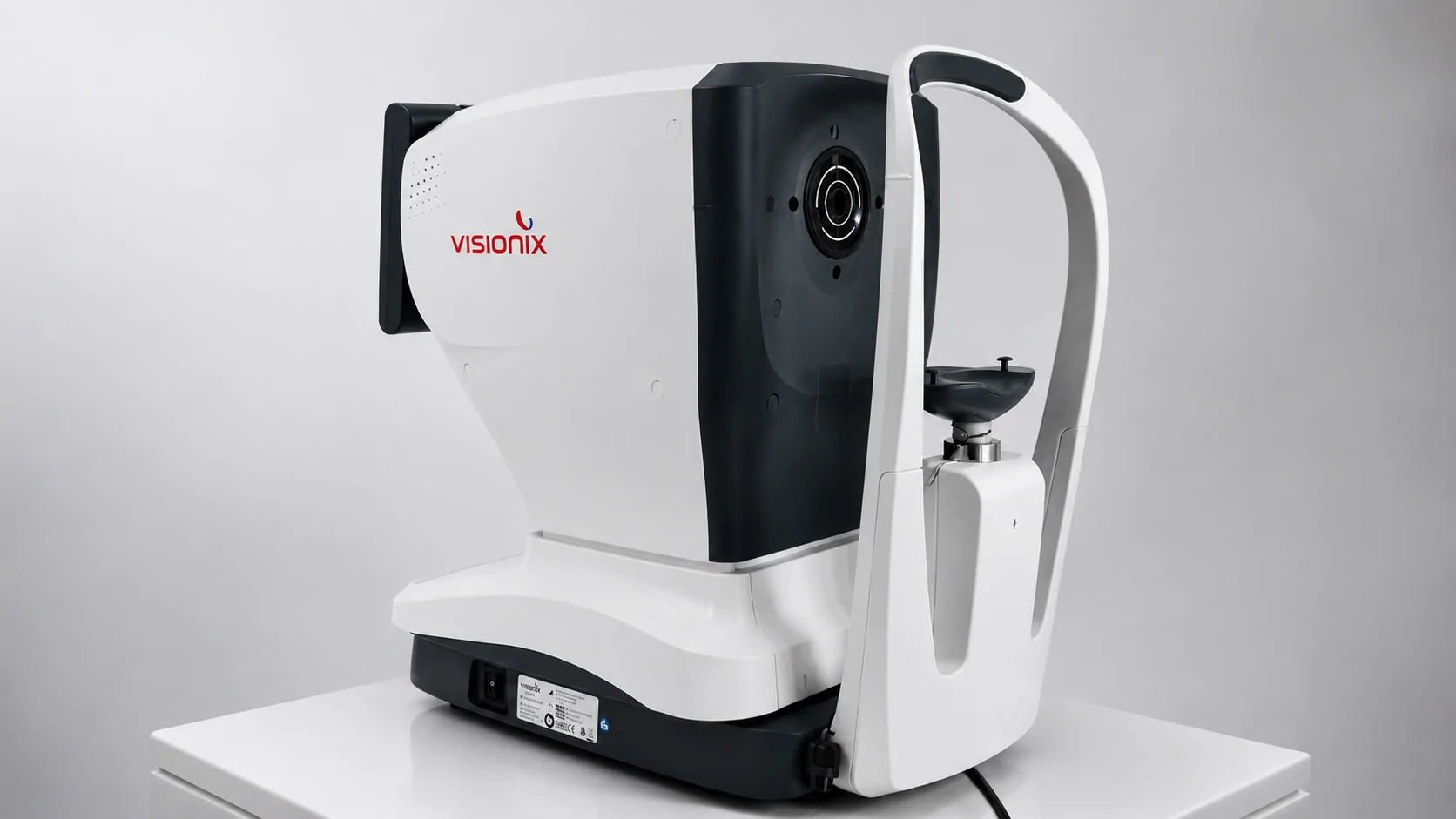

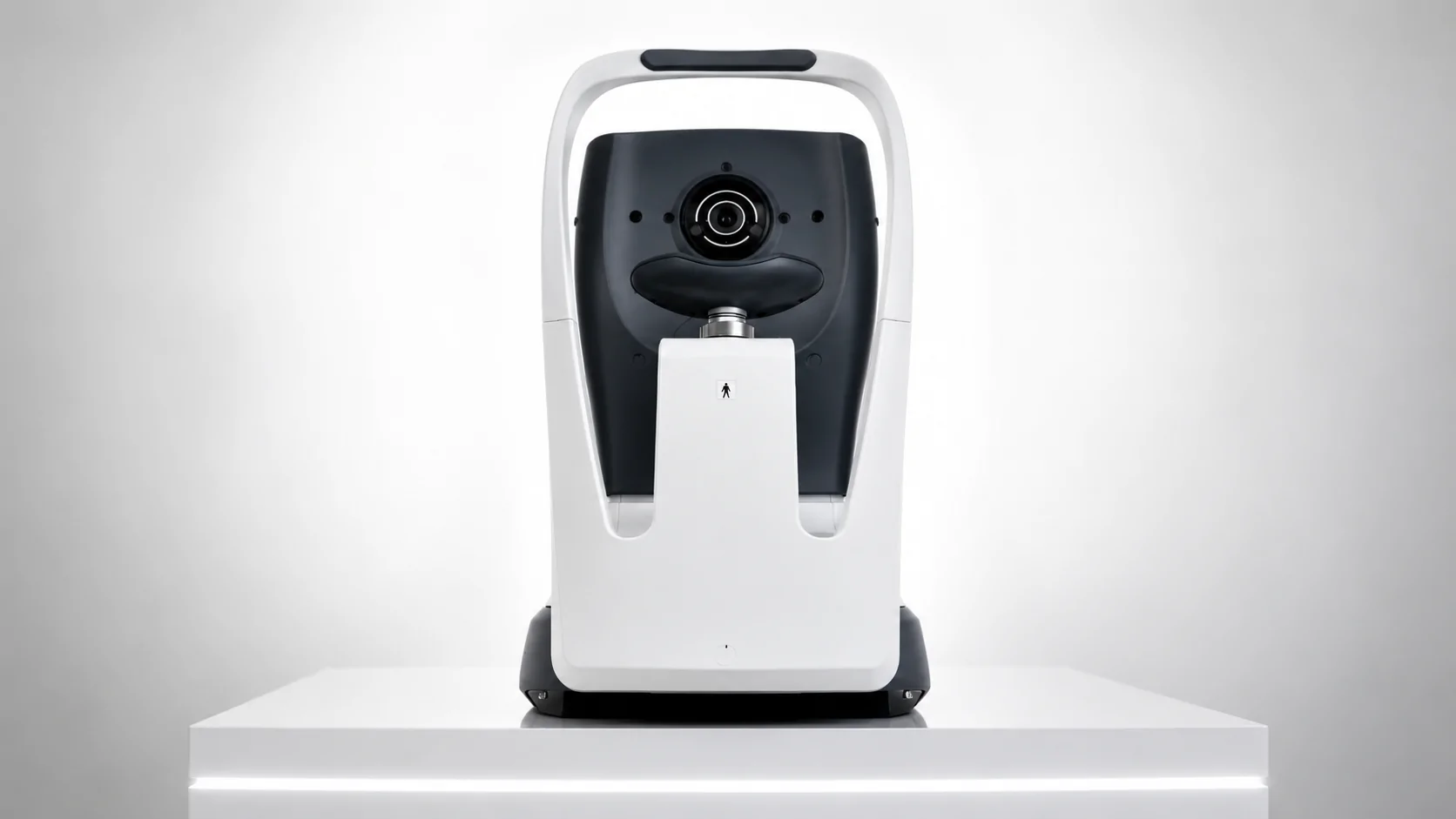

Visionix VX 90

Autorefractor / Keratometer with auto fog system

The VX 90 provides autorefraction and keratometry data that is accurate, reliable, and essential for contact lens fitting. A moving fixation target with auto fogging allows for minimal accommodation.

Request a quote

Discover the main benefits of Visionix VX 90

Measure the refraction of the eye by indicating sphere, cylinder and axis

Measure the keratometry: central and peripheral keratometry

Measure the pupil diameter

Be aware of the presence of cataracts by using backlighting for internal opacity detection

Download Brochure
Technical Specifications

Dimensions

  • WIDTH: 480 mm (18.9 in)
  • DEPTH: 288 mm (11.3 in)
  • HEIGHT: 500 mm (19.7 in)
  • WEIGHT: 14 kg (30 lbs.)
  • Standard: CE0120 classe 1m

Features

General

  • Target Fixation: Auto fog system

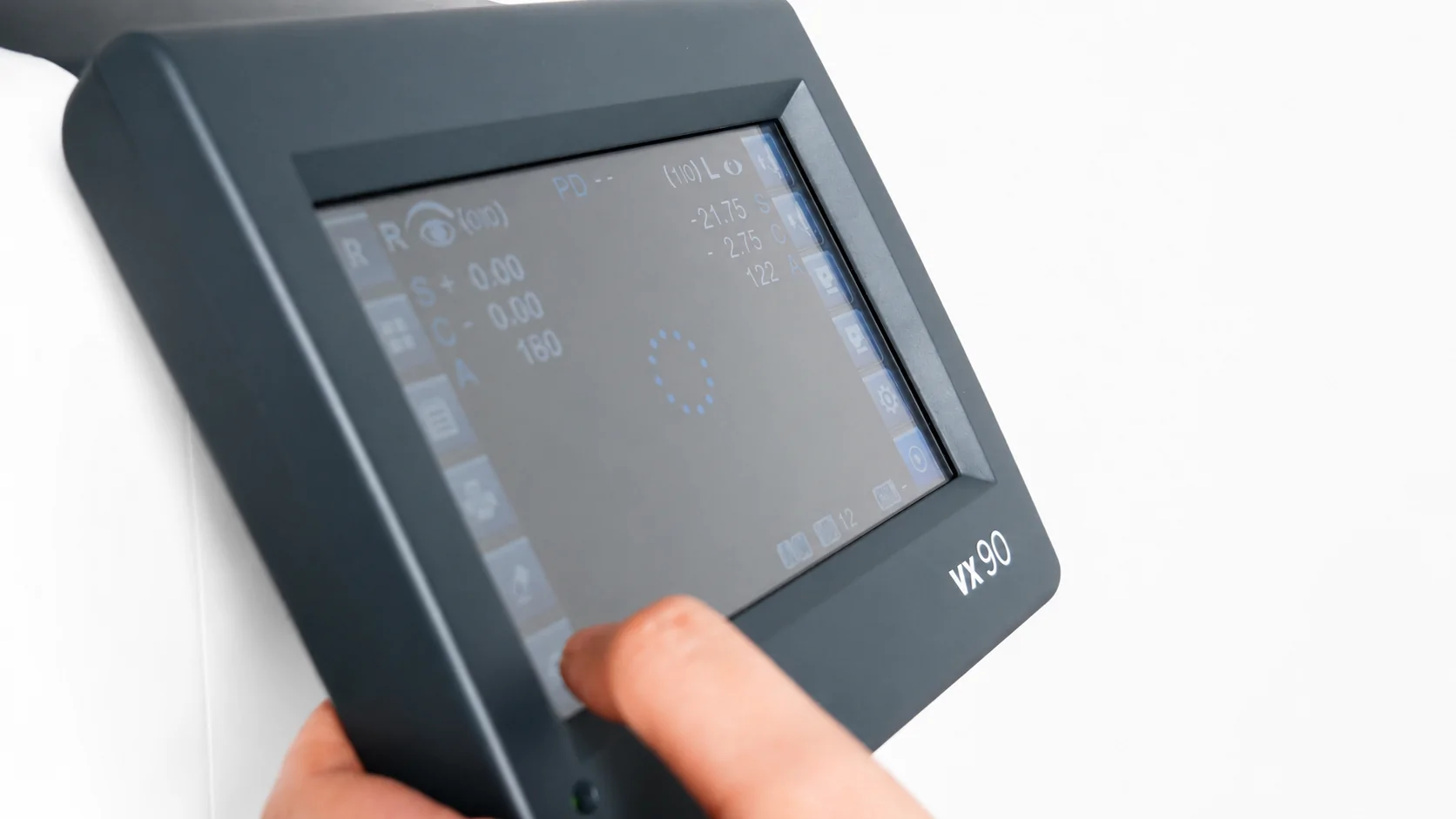

  • Measurement data display: 7” TFT colour LCD with touch screen (800×480)
  • PD Measurement: 85 mm measuring range max, 1 mm display unit
  • Measurement data recording: Built in thermal printer
  • External output terminal: RS232/WIFI
  • Power source, power consumption: 110V-240V AC, 50/60 Hz, 50 VA
  • Standards: Compliance with Medical Device Directive 93/42/EC

MEASUREMENT specification

  • Power Range: -20 D to +20 D
  • Power Accuracy: +/- 0.25 D
  • Astigmatism range: 0 to 10D
  • Astigmatism accuracy: 0.25 D
  • Axis range: 0° to 180°
  • Axis step: 1°
  • Axis accuracy: +/- 5°
  • Pupil diameter measured: 2,5 mm minimum

keratometry specifications

  • Corneal radius range: 5 mm to 10 mm
  • Corneal refractory power: 33D to 67D (n=1.3375)
  • Power repeatability: 0.03 mm
  • Corneal astigmatic power: 0 to 12 D
  • Astigmatism accuracy: 0.02D
  • Axis range: 0° to 180°
  • Axis step: 1°
  • Axis accuracy: +/- 5°
  • Measurement diameter: 2 mm to 12 mm
  • Peripheral keratometry: Nasal, temporal, up, down
